Transform your kitchen with the FORNO Maderno Refrigerator & Freezer Combo, a premium built-in solution that pairs two 28” convertible units into one seamless 60” design. With massive capacity, flexible temperature zones, and advanced cooling technology, it delivers professional performance wrapped in sleek, modern style.

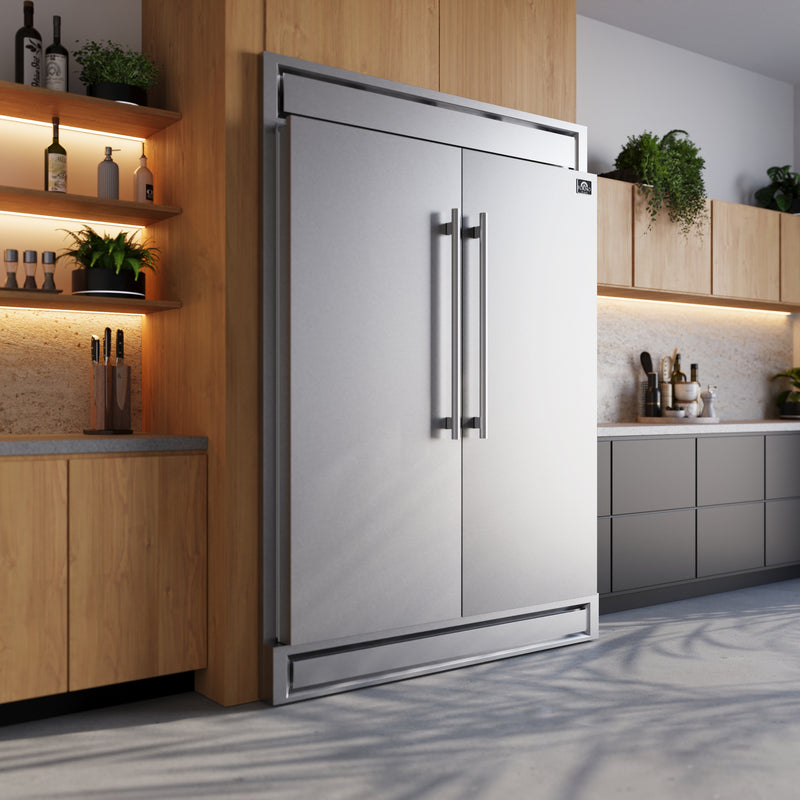

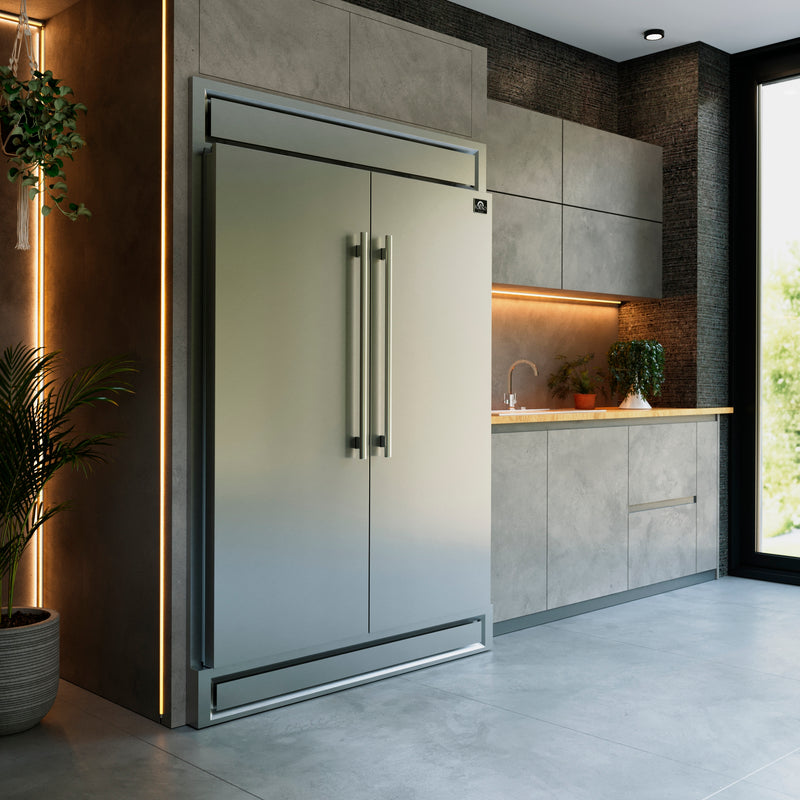

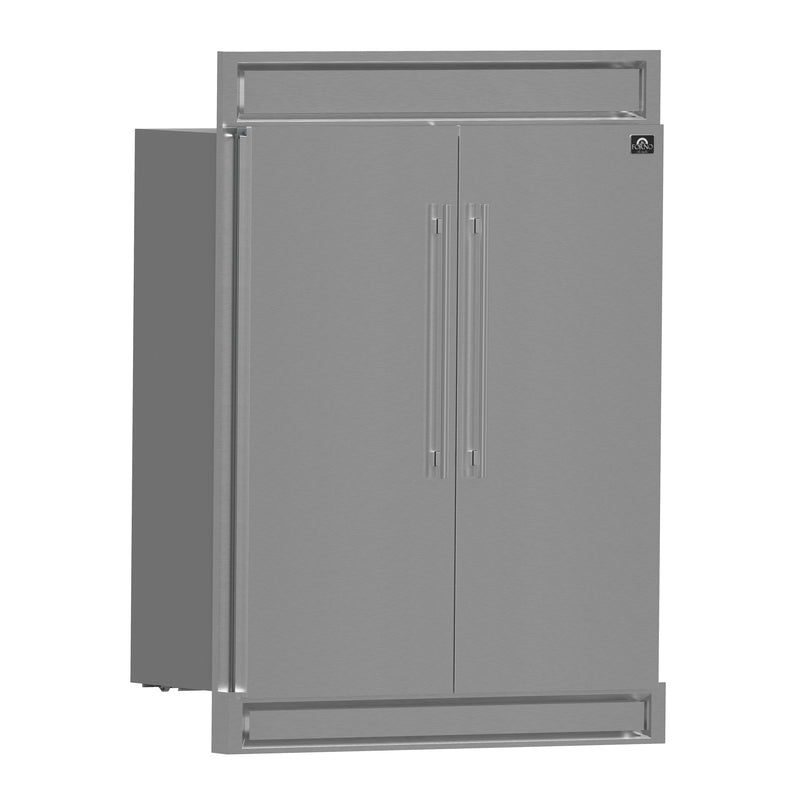

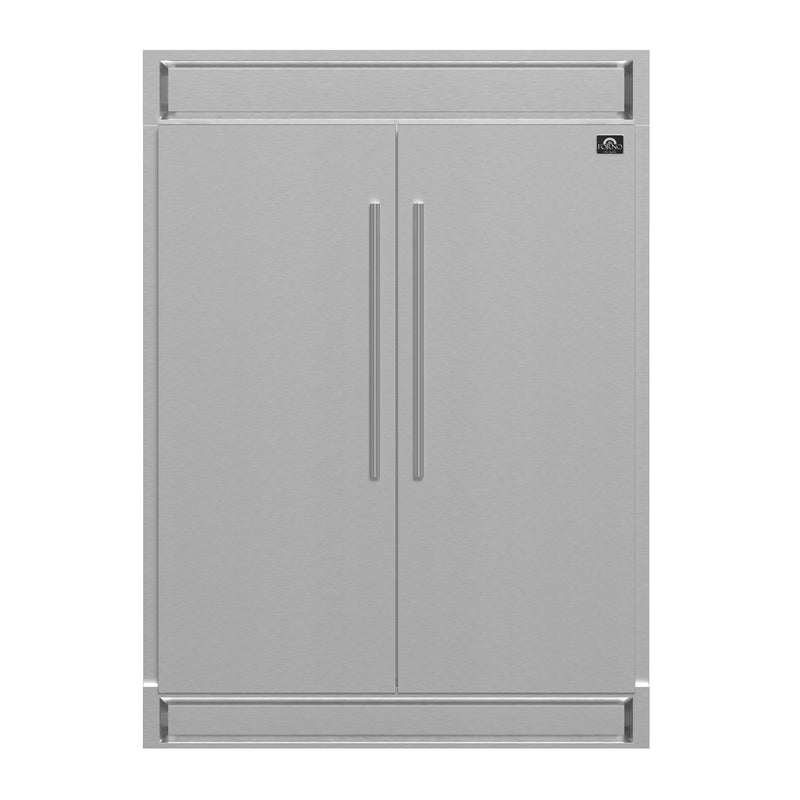

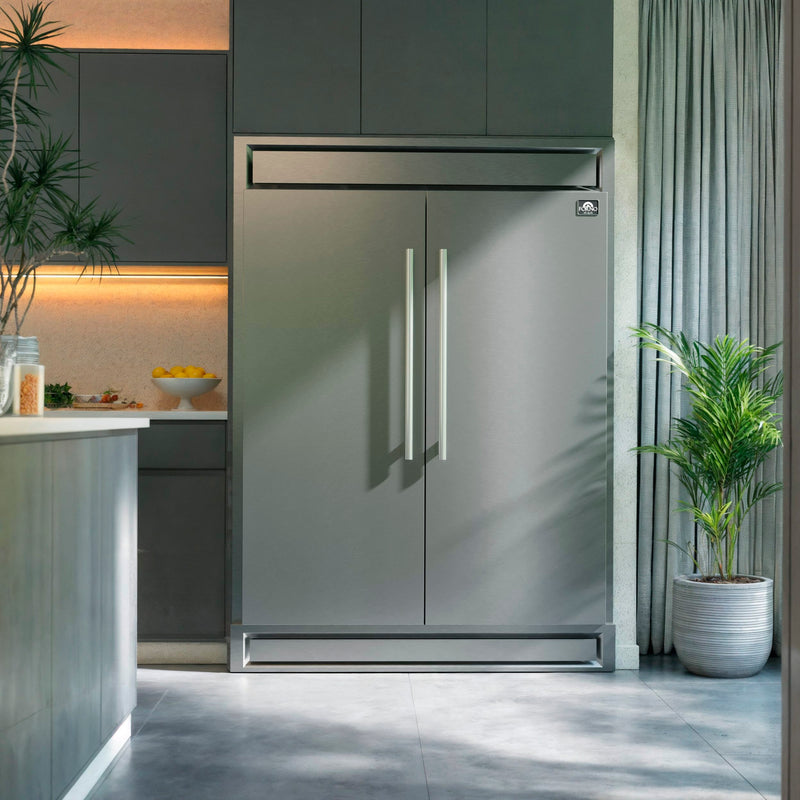

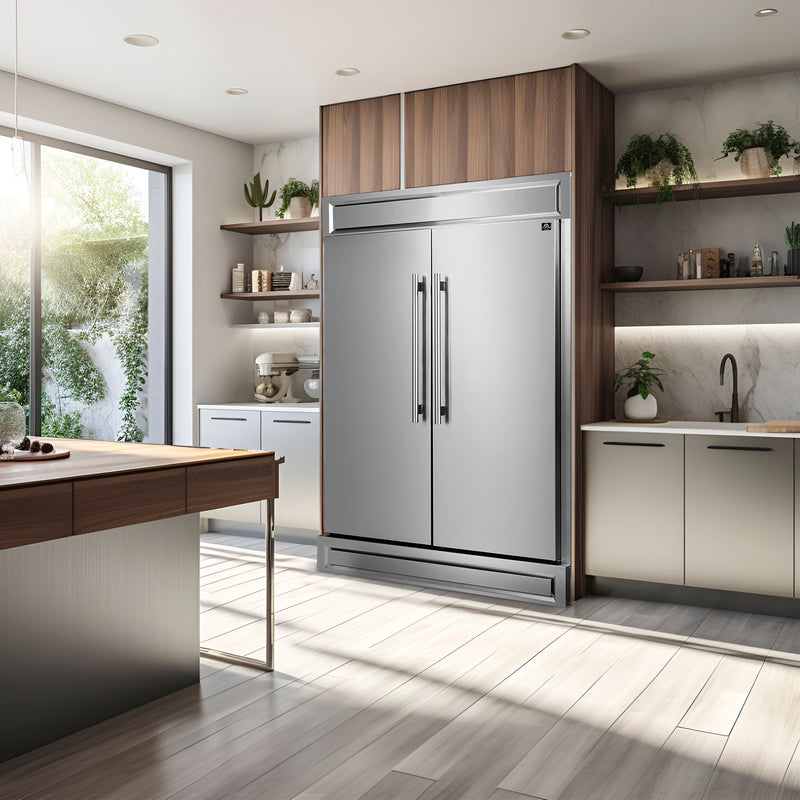

• Seamless Built-In Design – Decorative trim kit connects two 28” units into a stunning 60” side-by-side built-in appearance.
• Massive 27.2 Cu. Ft. Capacity – Generous combined storage space for fresh and frozen foods.
• Convertible Refrigerator/Freezer Zones – Each unit can switch between refrigerator and freezer modes for flexible, year-round storage.
• Total No Frost Technology – Eliminates manual defrosting while maintaining consistent internal temperatures.

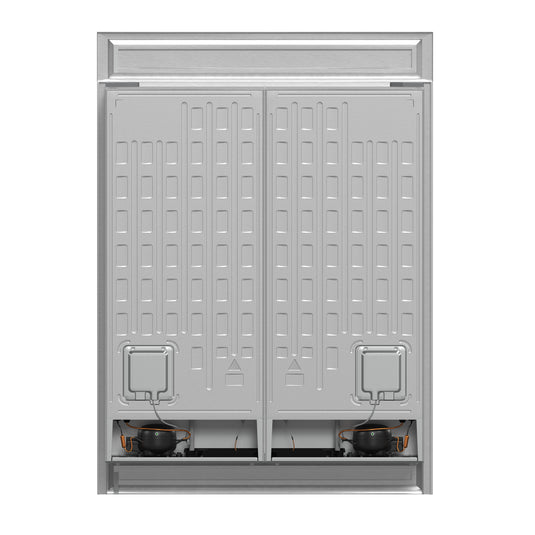

• Dual Inverter Compressors – Advanced cooling system provides precise temperature control, quiet operation, and improved energy efficiency.
• Super Cool & Super Freeze Modes – Rapidly lowers temperatures to preserve freshness after adding groceries.

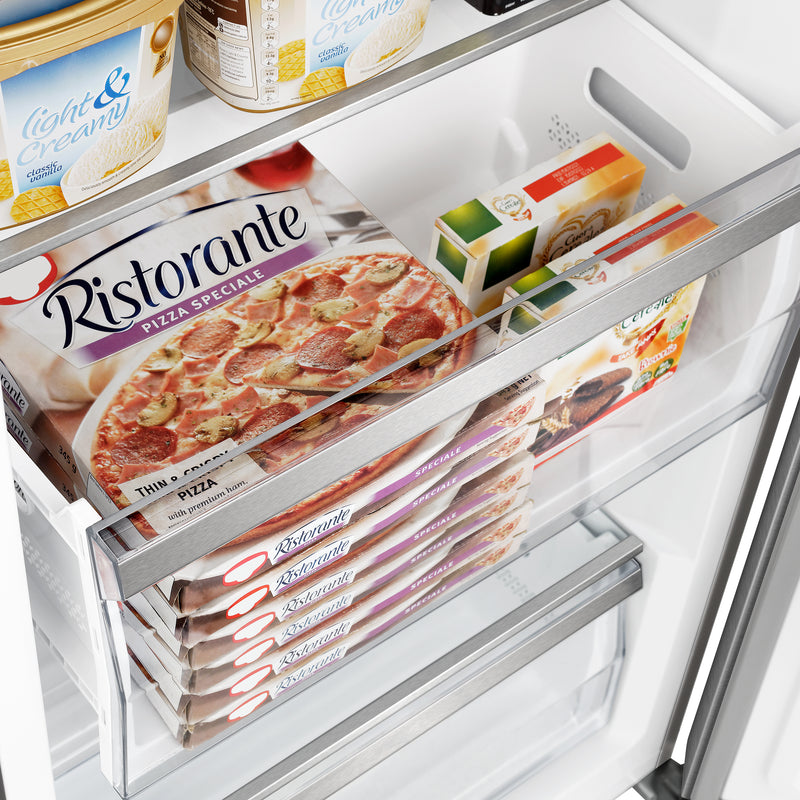

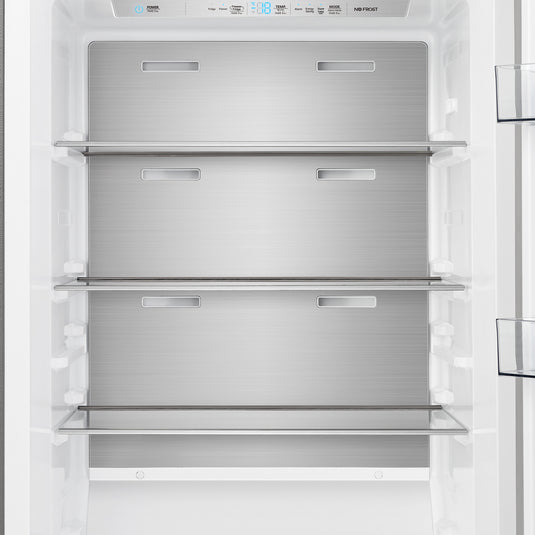

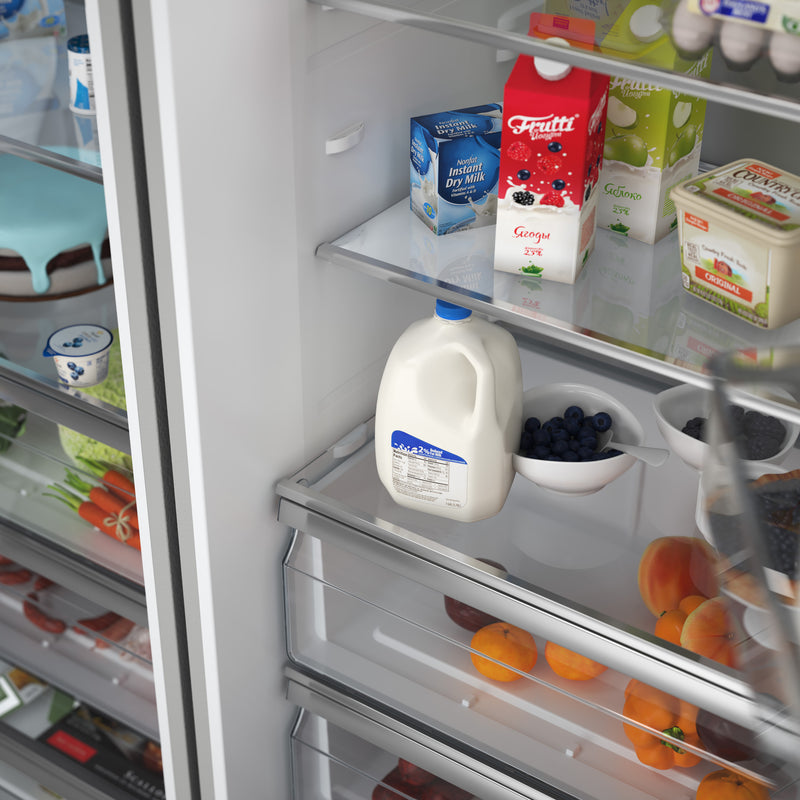

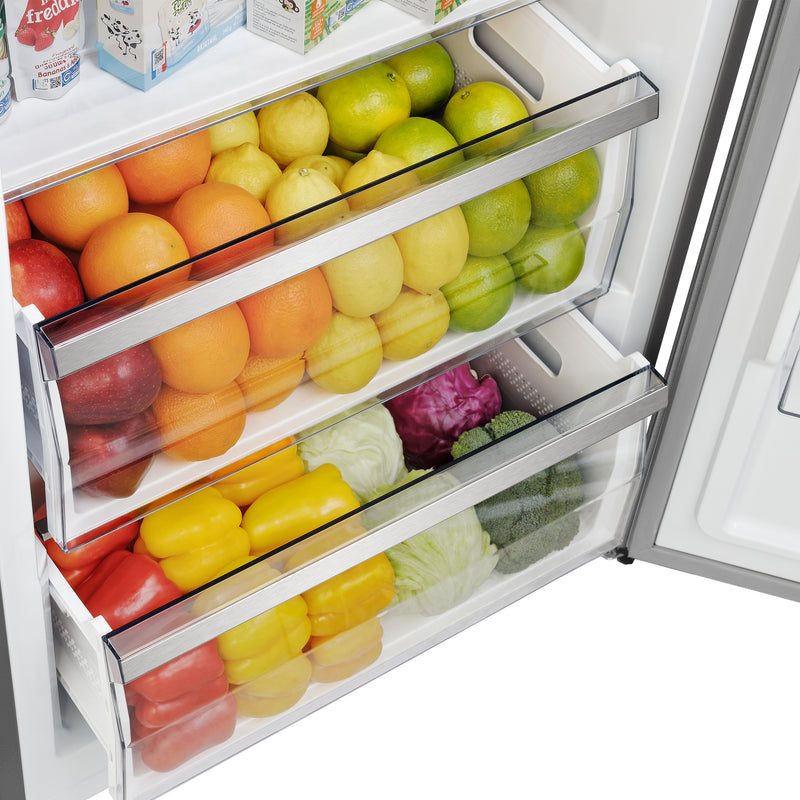

• Premium Interior Design – Sleek glass shelves with silver trim and spacious plastic drawers offer durability and easy organization.
• Bright LED Interior Lighting – Energy-efficient lighting provides clear, uniform visibility throughout both compartments.
• Fingerprint-Resistant Finish – Stainless steel VCM panels resist smudges for a clean, modern look with minimal maintenance.
• ENERGY STAR® Rated – Designed for high efficiency to help lower energy consumption and utility costs.
• Climate Class T Rated – Built to perform reliably even in warmer ambient environments.

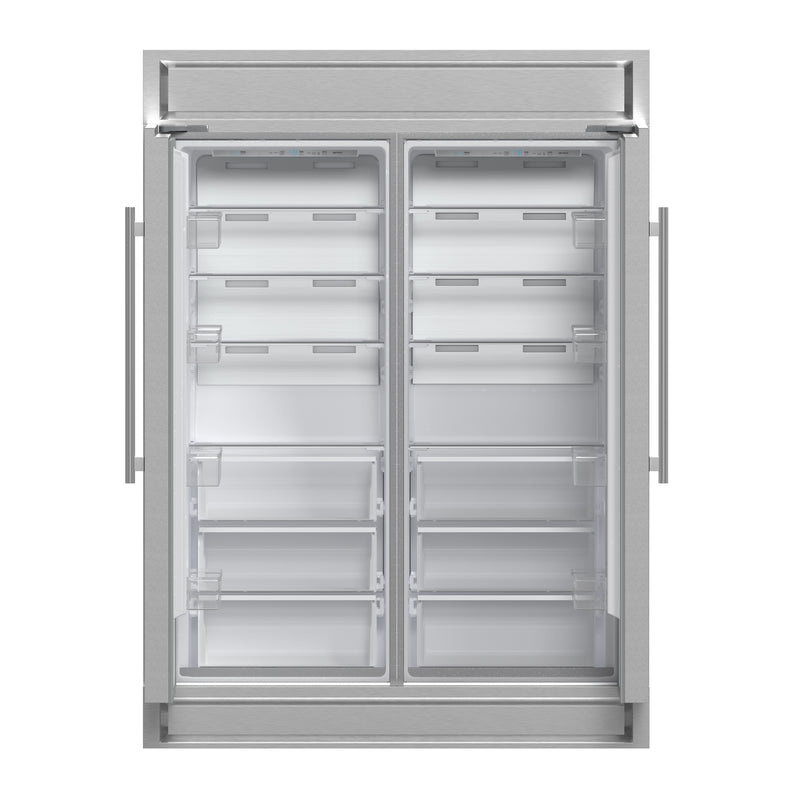

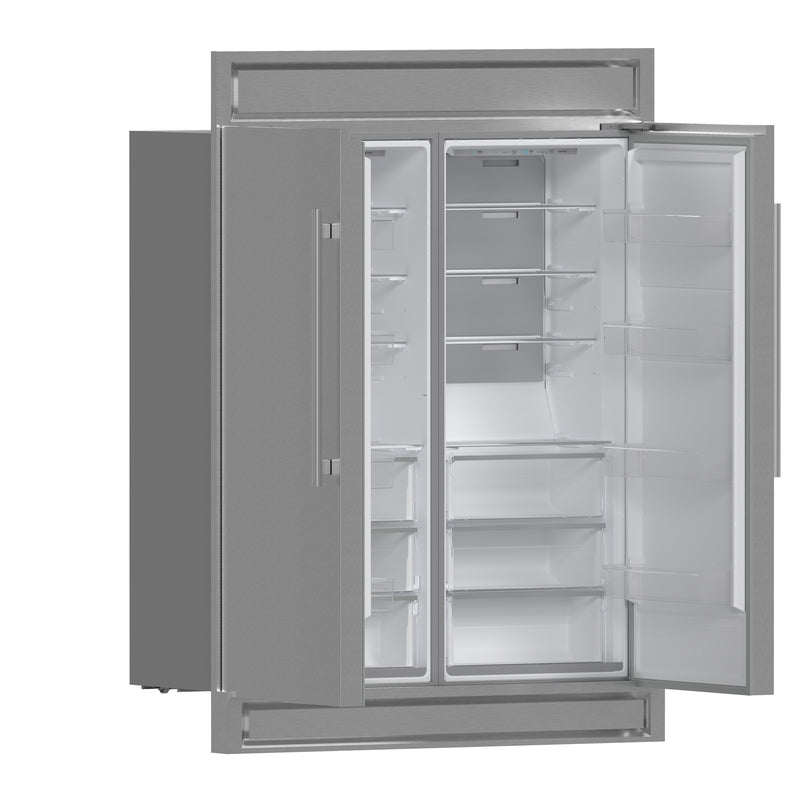

• Flexible Storage Options – Includes multiple adjustable glass shelves, transparent door bins, and removable drawers for customizable organization.

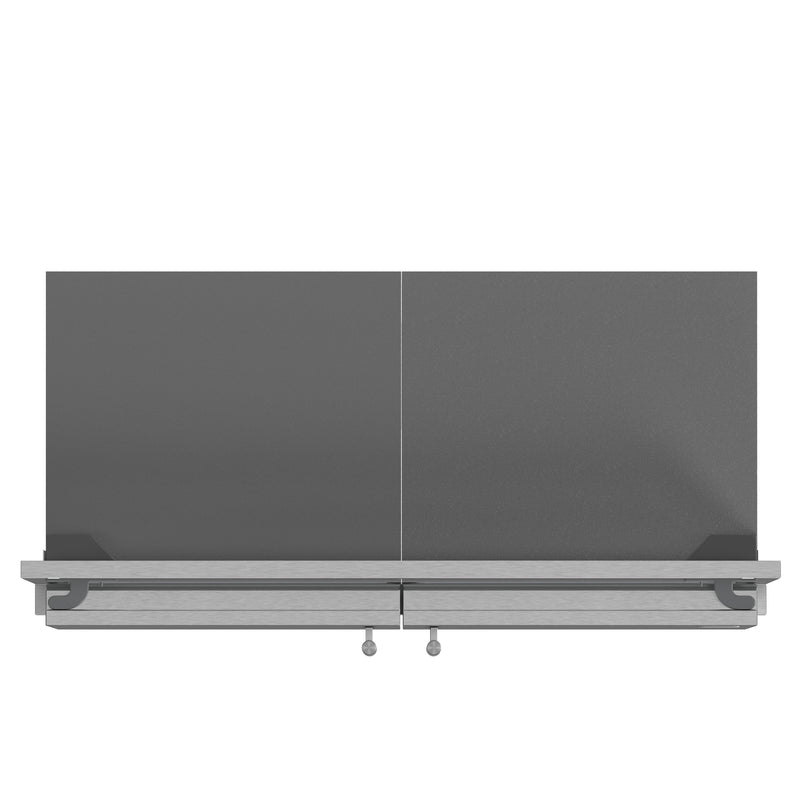

• Professional Installation Design – Built-in system consists of left swing unit (FFFFD1722-28LS), right swing unit (FFFFD1722-28RS), and trim kit (F1722-60MTK).
• Dedicated Electrical Requirement – Each unit requires its own 15-amp circuit breaker (2 × 15A total).
• Platform Base Required – A full-depth platform extending beyond the cabinet opening is necessary for proper trim kit installation.
• Installation Resources Available – Trim kit installation video and guide provided in the Installation & Guides section.
• Important Installation Notice – Failure to follow installation requirements may result in improper alignment, trim kit fitment issues, or voiding of the product warranty.
DIMENSIONS
Overall Dimensions

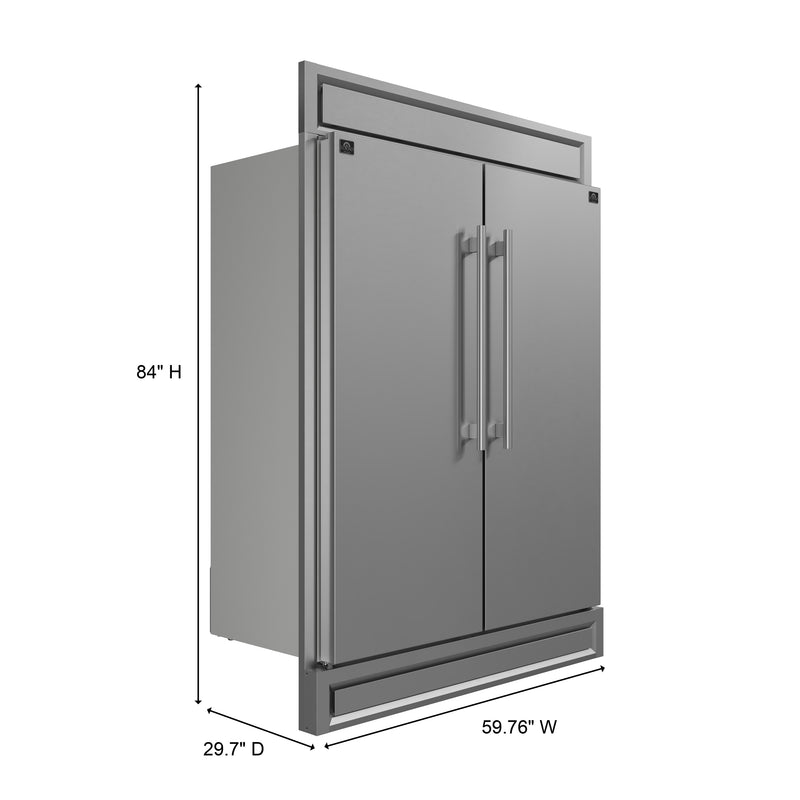

Without Grill Trim: 55.2" W x 29.7" D x 67.7" H With Grill Trim: 59.76" W X 29.7" D X 84" H
Cutout Dimensions
55.9" W X 28.94" D X 69.06" H
Total Capacity
27.2 cu. ft.
Fridge/Freezer Capacity
Left Swing: 13.6 cu. ft. Right Swing: 13.6 cu. ft.
Weight
330 lbs
ELECTRICAL REQUIREMENTS
Volts
120V
Frequency
60Hz
Running Amperage
7.6A
Circuit Breaker Amperage
2 x 15A
Plug Included
Yes
Plug Type
2 x Elbow NEMA 5-15
Power Cord Included
Yes
Number of Power Cord
2

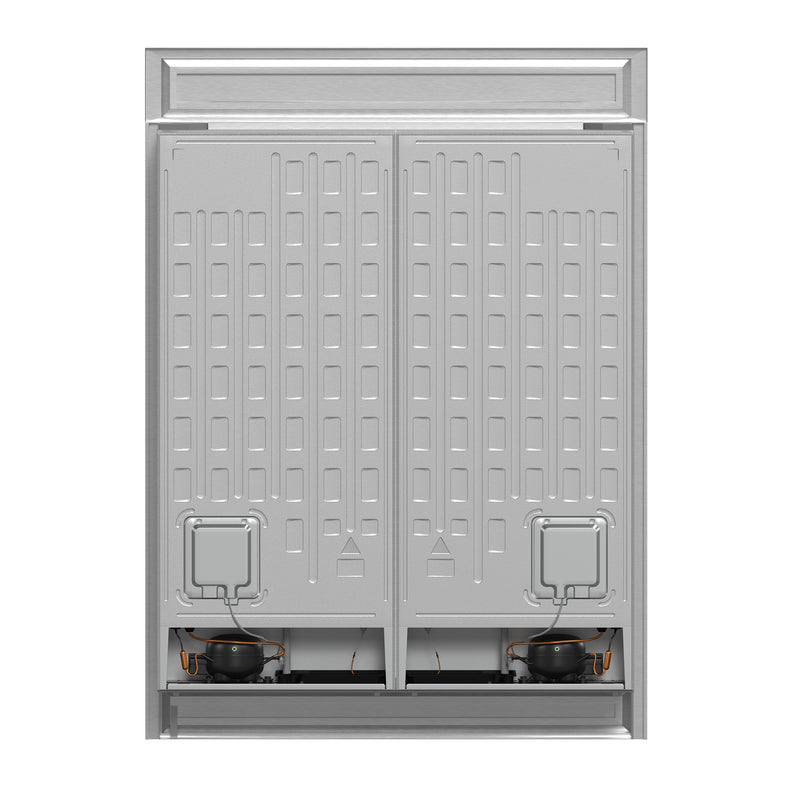

Power Cord Location
Lower Back
Power Cord Length
5.80 ft.
Estimated Annual Operating Cost
$110USD
FEATURES
Mount Type
Built-in/Side-by-Side
Installation Type
Built-In (platform based required - see Installation Disclaimer)
Counter Depth
Yes
Color
Stainless Steel
Interior Finish
White
Number of Fridge Shelves
3 per fridge
Number of Fridge Drawers
3 per fridge

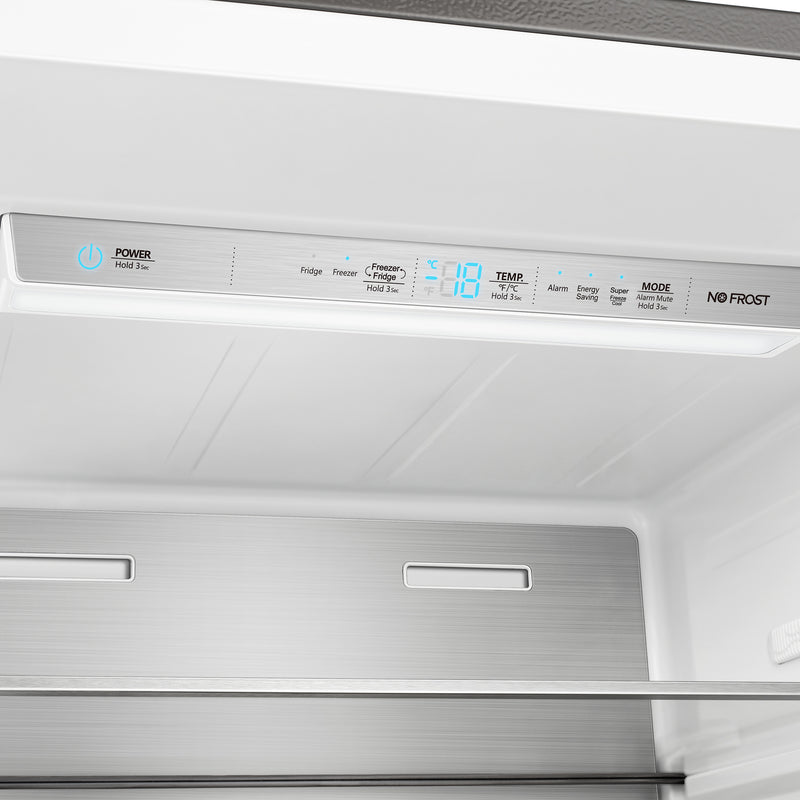

Control Type
Electronic
Control Location
Internal
Temperature Range Refrigerator
36°F to 46°F
Temperature Range Freezer
- 11°F to 7°F
Cooling System
Multi Air Flow
Compressor Type
Inverter Compressor
Defrost Type
Automatic
Ice Maker
No
Water Dispenser
No
Water Pipe Included
No - not required
Sabbath Mode
No
Clock
No
Door Ajarm Alarm
Yes
WARRANTY & CERTIFICATIONS
Warranty
2 Year Parts & Labor
Certifications
Energy Star. UL Listed
Commercial Use
No (Warranty will be void if used in a commercial setting)
ASSEMBLY
Installation Disclaimer
Built-in unit includes 2 swing-door components (left/right) and trim kit. Requires two 15A dedicated circuits and a full platform base extending past the cabinet opening for proper trim installation.
· The courier will bring the appliance into your home and open the box to check for damages.
· Debris removal, installation, or haul away is not included.
Delivery to Room of Choice (up to 7 steps with 2 movers):
· The courier will deliver to the room of your choice, up to 7 steps with 2 movers.
· If there are more than 7 steps, and/or more movers are required, the courier will charge the customer a fee.
· The fee is dependent on the number of steps and the number of movers required to get the appliance to the desired location.
· These fees are determined by the courier and are out of FORNO's control.
All other brands include free curbside shipping:
· The courier will bring the appliance to your property but not inside your home, garage, porch, etc.
Shipping Coverage
Delivery is not available to all ZIP codes. Please contact our Sales Team to confirm availability in your area.
Tracking & Delivery Scheduling
Most customers receive tracking information 3–5 business days after placing an order. Once you receive your tracking number, please allow 1–2 business days for tracking details to populate.
FORNO returns must be requested within 30 days of your delivery date. We are unable to process returns submitted after this period. Products must be unused, uninstalled, and in their original packaging, including the box and pallet, to qualify for a return.
Restocking Fee Please note, a 30% restocking fee will be applied to all approved returns.
Non-Returnable Items Accessories including but not limited to: chimneys, extensions, crown moldings, trim kits, brass burners, griddles, and similar items are not eligible for return.

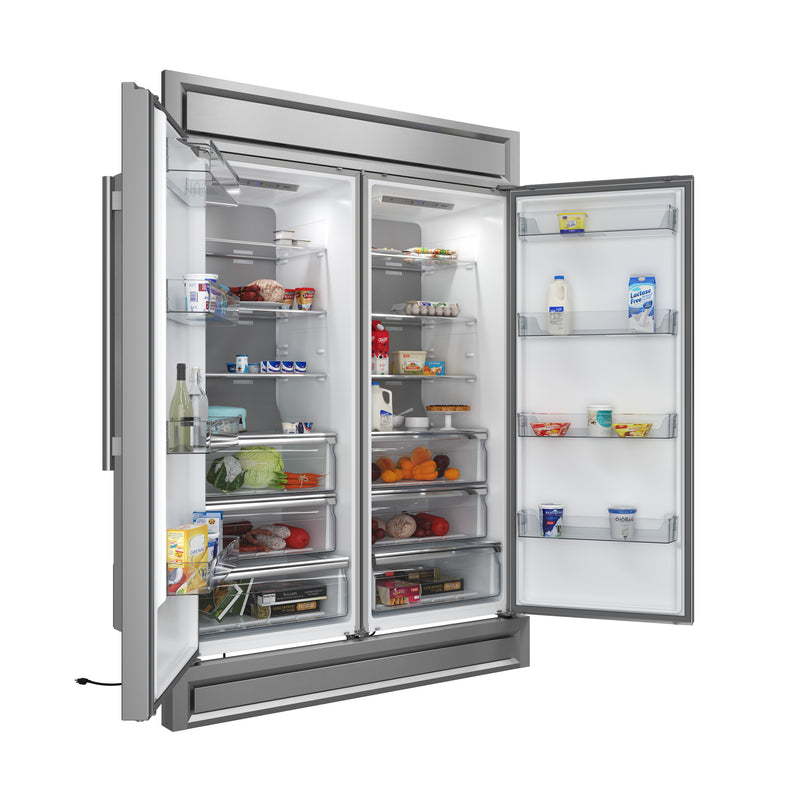

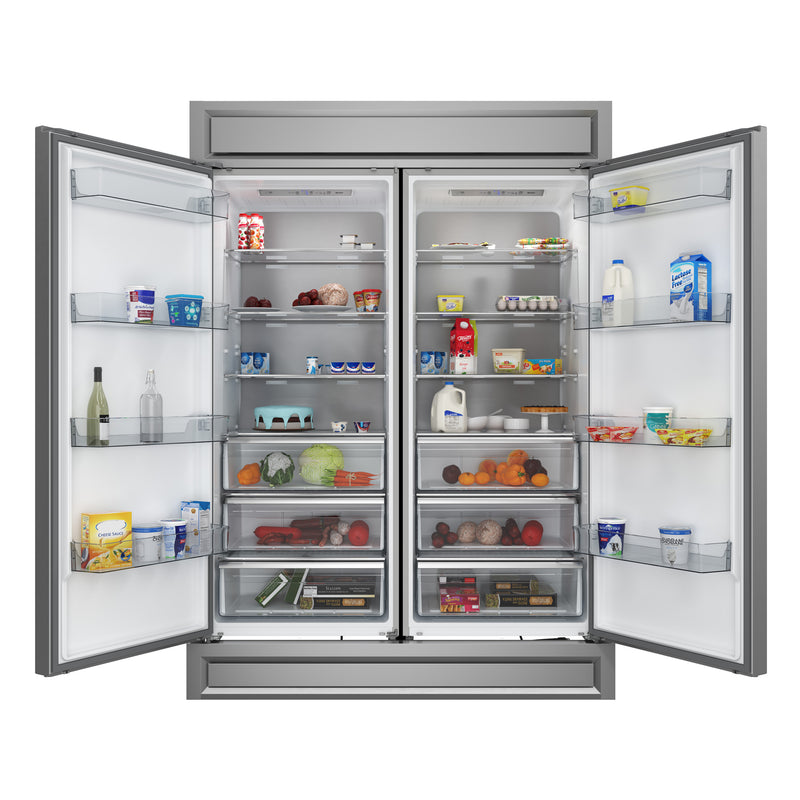

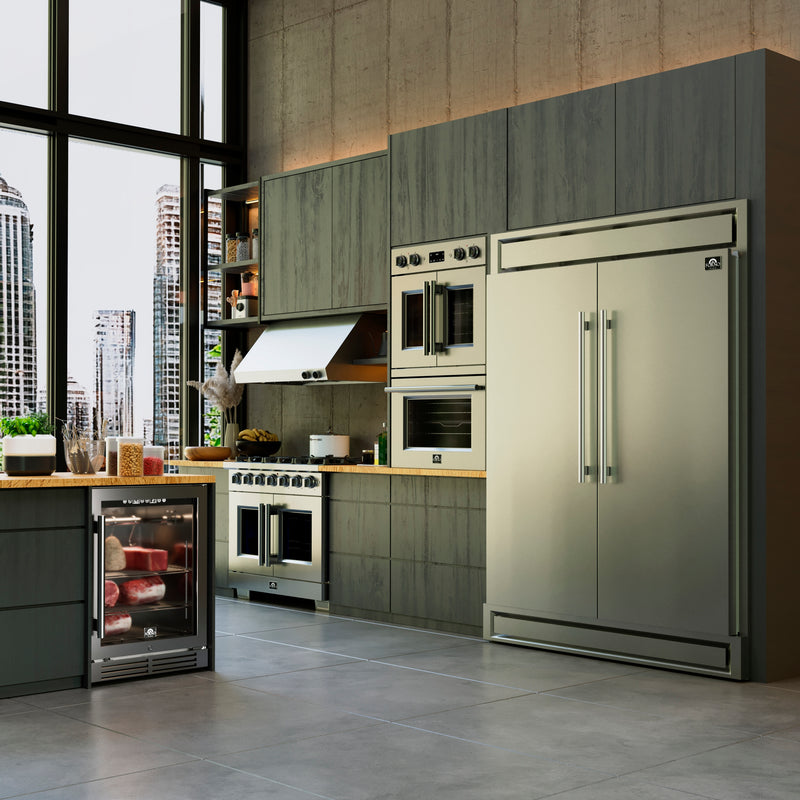

The Forno Maderno combines two 28 Inch refrigerators with decorative trim grill, extending to a 60 Inch width for a built-in appearance, harmoniously blending style with convenience. This combo offers ample storage space totaling 27.2 cu.ft. They feature customizable cooling with convertible function and total no frost technology, eliminating tedious defrosting. The side-by-side door design integrates seamlessly, while elegant glass shelves with silver trim and practical plastic door balconies enhance appeal and storage. Effortlessly switch between Fahrenheit and Celsius, aided by LED lighting for easy item location. Six glass shelves and six plastic drawers with silver trim provide flexible storage, and temperature settings are easily managed with the electronic touch control panel. The VCM door panel and metal back ensure durability, and the combo is T Climate Class certified with an E-star energy rating for sustainability.
